Default Is there a "how to"

Can anyone tell me if there is a how to on how to use a battery charge for storage.. i cant seem to find a picture on how to use a battery tender for the winter.. i just need a pic on how to do it without having to take the battery out. Thanks in advance... btw i have a jr. Battery tender that i bought on ebay.
.
__________________

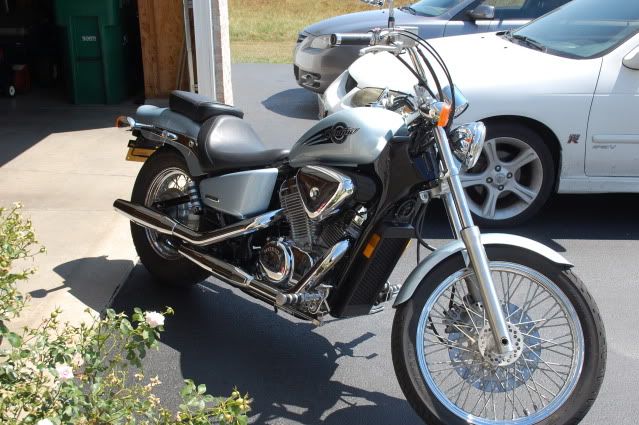

2007 Honda VLX 600

Last edited by 07SilverShadow; 12-03-2012 at 03:01 PM. Reason: misspelling
07SilverShadow is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 12-03-2012, 03:02 PM   #2 (permalink)
Member

Join Date: Mar 2012
Posts: 81
Default

Don't have a pic handy...

Did your tender come with extra leads that you can attach to your battery? Mine came with leads that screw in via the battery terminals, then can be routed out the side of the bike. That is, you'll have to take your seat off and get down to the battery, but just once. From then on, the leads can be reached while the bike is in its normal configuration.

So, any time you need to put the bike on the tender, you just connect the tender to the leads and you're good to go.
flivver is offline   Reply With Quote Quick reply to this message
Old 12-03-2012, 03:02 PM   #3 (permalink)
Senior Member

gat803's Avatar

Join Date: May 2005
Location: Michigan
Posts: 5,317
Default

Did your BTjr come with the adapter to attach to the battery terminals?

This is my Venture and where I leave the end hang...





and where it stays on the KLR...

__________________
Down by the river...



Last edited by gat803; 12-03-2012 at 03:24 PM.
gat803 is offline   Reply With Quote Quick reply to this message
Old 12-03-2012, 03:06 PM   #4 (permalink)
Senior Member

Aced It's Avatar

Join Date: Aug 2009
Location: In your garage stealing parts off your bike
Posts: 2,605
Default

Quote:
Originally Posted by 07SilverShadow View Post
Can anyone tell me if there is a how to on how to use a battery charge for storage.. i cant seem to find a picture on how to use a battery tender for the winter.. i just need a pic on how to do it without having to take the battery out. Thanks in advance... btw i have a jr. Battery tender that i bought on ebay.
.
The tender should have come with a pair of alligator clips and a pair of ring terminal connectors that bolt onto the battery posts (see pic below). Bolt on the connectors and drop down the extension wire to someplace convenient to access so you an hook it to your tender. That tender has an automatic float when the battery is fully charged, so it will maintain it during storage. That's really all you need to know.

I have the "plus" version. I use the alligator clips on my car in storage (dry-cell Optima battery).


__________________
Visit My Road to Bob for my '91 VLX600 build, and My Road to Rod for my '03 ACE750 build.

Keep the rubber side down, unless of course you have a rubber head!

ACE VT750 4 Advance Timing Mod
Tubeless Spokes
Service Manual Downloads:
ACE VT750
VLX VT600

Last edited by Aced It; 12-03-2012 at 03:09 PM.
Aced It is offline   Reply With Quote Quick reply to this message
Old 12-03-2012, 03:28 PM   #5 (permalink)
Member

07SilverShadow's Avatar

Join Date: Jul 2012
Location: Illinois
Posts: 153
Garage
Default

So there is no way for me to do this without taking the seat off?... damn me
. And the tender looks exactly like the pics posted... thanks guys
__________________
2007 Honda VLX 600
07SilverShadow is offline   Reply With Quote Quick reply to this message
Old 12-03-2012, 03:29 PM   #6 (permalink)
Senior Member

Aced It's Avatar

Join Date: Aug 2009
Location: In your garage stealing parts off your bike
Posts: 2,605
Default

Quote:
Originally Posted by 07SilverShadow View Post
So there is no way for me to do this without taking the seat off?... damn me
. And the tender looks exactly like the pics posted... thanks guys
Is there something difficult about removing your seat? You only have to do it once, as was previously stated.
__________________
Visit My Road to Bob for my '91 VLX600 build, and My Road to Rod for my '03 ACE750 build.

Keep the rubber side down, unless of course you have a rubber head!

ACE VT750 4 Advance Timing Mod
Tubeless Spokes
Service Manual Downloads:
ACE VT750
VLX VT600
Aced It is offline   Reply With Quote Quick reply to this message
Old 12-03-2012, 03:35 PM   #7 (permalink)
Senior Member

John Hopkins's Avatar

Join Date: Sep 2011
Location: Tredegar,South Wales, near England, not far from Scotland.
Posts: 4,546
Default

Quote:
Originally Posted by 07SilverShadow View Post
So there is no way for me to do this without taking the seat off?... damn me
. And the tender looks exactly like the pics posted... thanks guys
Sure... Just bring it round to me and I will do it for you..

John.
__________________
Beauty is only skin deep but ugly goes right to the bone.
John Hopkins is offline   Reply With Quote Quick reply to this message
Old 12-03-2012, 03:38 PM   #8 (permalink)
Member

Join Date: Mar 2012
Posts: 81
Default

Quote:
Originally Posted by 07SilverShadow View Post
So there is no way for me to do this without taking the seat off?... damn me
. And the tender looks exactly like the pics posted... thanks guys
Taking the seat off is easy. Your bike looks similar to mine... It's one (10mm IIRC) bolt to remove the rear/passenger seat, then another (12mm IIRC) to remove the front seat. The only tricky part is figuring out how to slide the rear side so that you can lift it off of the front seat's bolt.
flivver is offline   Reply With Quote Quick reply to this message
Old 12-03-2012, 03:39 PM   #9 (permalink)
Senior Member

gat803's Avatar

Join Date: May 2005
Location: Michigan
Posts: 5,317
Default

Quote:
Originally Posted by 07SilverShadow View Post
So there is no way for me to do this without taking the seat off?... damn me
I took the seat off the Venture just to take a picture for you....it's not brain surgery.
__________________
Down by the river...


gat803 is offline   Reply With Quote Quick reply to this message
Old 12-03-2012, 03:49 PM   #10 (permalink)
Member

luisr320's Avatar

Join Date: Jun 2010
Location: Lisbon, Portugal
Posts: 529
Default

As my restoration project lasted 1 and 1/2 years, I used an automatic mechanical timer connected to my normal battery charger, and it charged my battery every day for 10 minutes. I started with a full charged battery.
After 1 and 1/2 years, the battery was ready to be used, full charged.

This is the type of timer I used:


And this was the battery charger:


Since everybody (almost) have a battery charger, I think this is a cheepo way of maintaining the battery alive during the winter.
