Default Another Winter Project...

Hello to the forum (again). I have been quite busy between my girl and my newest ride that I have neglected staying up on things here at the .net

I wanted to share my newest project... a craigslist find for under $1000! Its an '83 yamaha venture royale (with cheese?)

If you are a Tarantino fan, that might just get a laugh.

This project has consumed about two and a half months of winter and having sat on it last night to adjust the shift and brake lever play got the excitement for the first ride of the season going again...

These photos show the bike since I have stripped the body plastics, repaired the broken mounts and such and started reassembly. The engine purrs with 43500+ miles (barely broken in!). I will add more photos as the project progresses.

right now I am waiting for quotes to have the seat recovered. First one came in at 300-350 depending on materials.







__________________
The Reverend
'01 Shadow Sabre VT1100C2
'83 XVZ12T Yamaha Venture Royale
Reverend Biker is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 02-16-2011, 10:08 AM   #2 (permalink)
Member

DixieGranite's Avatar

Join Date: Jan 2011
Location: New Hampshire
Posts: 342
Default

Nice find! That faring looks loaded with gadgets.
__________________
I aim to misbehave

DixieGranite is offline   Reply With Quote Quick reply to this message
Old 02-17-2011, 12:54 PM   #3 (permalink)
Member

Reverend Biker's Avatar

Join Date: Jun 2008
Location: Western Massachusetts
Posts: 197
Garage
Send a message via AIM to Reverend Biker Send a message via MSN to Reverend Biker
Default

I could not believe this storage unit find! The previous owner couldn't afford to keep the storage unit after the price/month doubled. Their loss was my gain.

The fairing has a build in state-of-the-art 1983 radio, amp, auto-reverese cassette deck on the left. On the right is the air-ride suspension control panel, an aftermarket radar detector and I have relocated some switches seen in the pic (the green wires seen just below the handlbars) for the electric cooling fan and driving lights.

I have to give my father a bunch of credit. My garage does not have the room his workshop does. Since I have been working in his shop, he has gone out and started to weed out all the problems with the wiring from the previous owner and made sense out of the rats nest. So much for not getting involved in my latest project! I can't wait to retire myself... there are so many more projects to work on... like my bobber from last year! I have that one running on one carb... once I get the other fixed it is all cosmetics. Maybe next winter?!
__________________
The Reverend
'01 Shadow Sabre VT1100C2
'83 XVZ12T Yamaha Venture Royale
Reverend Biker is offline   Reply With Quote Quick reply to this message
Old 04-13-2011, 12:33 PM   #4 (permalink)
Member

Reverend Biker's Avatar

Join Date: Jun 2008
Location: Western Massachusetts
Posts: 197
Garage
Send a message via AIM to Reverend Biker Send a message via MSN to Reverend Biker
Default

Hello again...

The project has stalled waiting for rebuild parts. Since my last post I have:

- completely stripped my donor venture. The brake calipers look almost new (no corrosion or wear on the finish). That is where it ends... the calipers on both bikes were hopelessly siezed. I purchased 3 rebuild kits ($125 for 3 kits, 6 rubber o-rings in each). They shipped from the dealer in NH this morning and I should have them for the weekend.

- my father (again, I have to give him credit for coming thru!) was able to take apart the solenoids for the air ride compressor system. He said the grease inside had turned to a sticky paste and basically glued the solenoids closed. He cleaned and rebuilt them. It works GREAT now!

- we found the radio quick-connect to not seat properly and was the cause of static and one speaker cutting out

- swapped the rims from my donor (the rims show some pitting but were no where near as corroded as the originals).

- purchased new tires

- we found that the starter was not the issue, nor the idler gears or flywheel. We think it may be the starter solenoid making the infrequent clunking when we kick the starter over.

- swapped all of the chrome around so the best was on my running bike. I will have to see if I have a photo of the donor carcass so you can see what is really left.






I am in reassembly phase now. The exhaust is back on, both new rims/tires are installed. I am waiting for the caliper rebuild kits to finish the calipers and finish reassembling the brakes. Once that is complete, install the newly recovered seat and the luggage.

I will post when I have the fully assembled photos taken.

The Rev
__________________
The Reverend
'01 Shadow Sabre VT1100C2
'83 XVZ12T Yamaha Venture Royale
Reverend Biker is offline   Reply With Quote Quick reply to this message
Old 06-29-2011, 10:26 AM   #5 (permalink)
Member

Reverend Biker's Avatar

Join Date: Jun 2008
Location: Western Massachusetts
Posts: 197
Garage
Send a message via AIM to Reverend Biker Send a message via MSN to Reverend Biker
Default

I have posted another thread in the tech forum regarding my problem with the shifter. It was easily resolved by a local bike guru and former circle-track racer. (I think the thread was titled "Need an 80's clutch guru")

I have gotten about 450 miles on the shifter fix and the only issue left to deal with is an issue with the carbs. There is a bit of a stumble at idle, and around 4500 rpms. My tech told me the problem is the ethanol has rotted away some rubber seals in the carb.

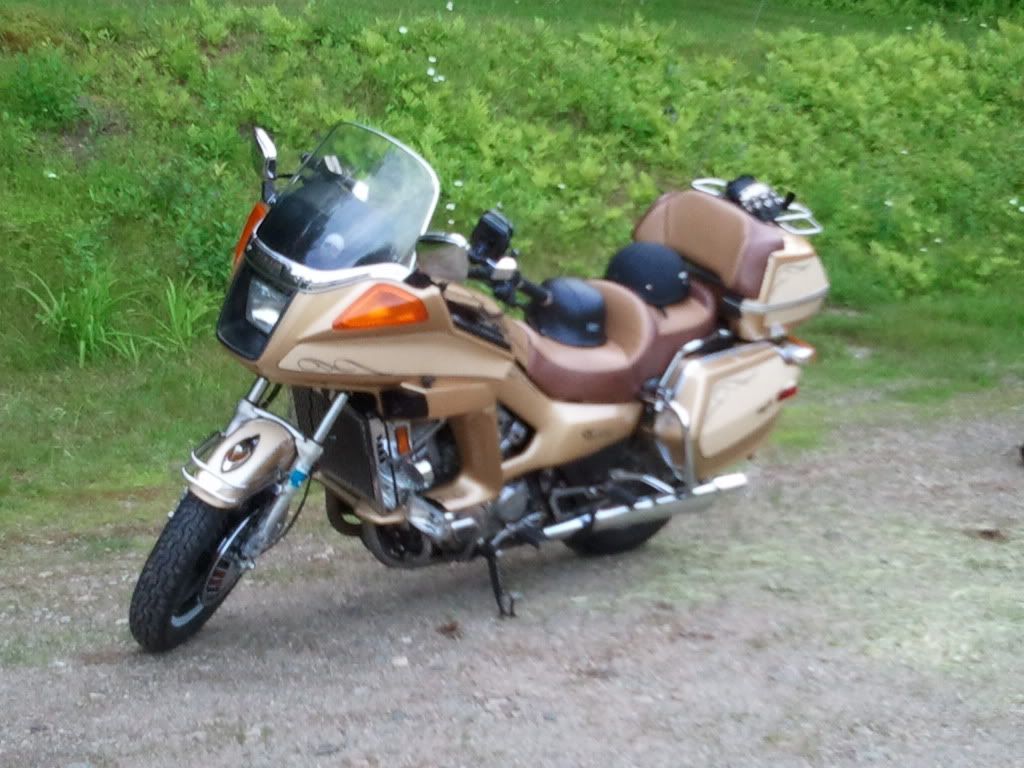

I am quite excited... this bike handles like a dream. This is the finished project, cosmetically speaking.





The Rev
__________________
The Reverend
'01 Shadow Sabre VT1100C2
'83 XVZ12T Yamaha Venture Royale
Reverend Biker is offline   Reply With Quote Quick reply to this message
Old 01-14-2013, 03:46 PM   #6 (permalink)
Member

Reverend Biker's Avatar

Join Date: Jun 2008
Location: Western Massachusetts
Posts: 197
Garage
Send a message via AIM to Reverend Biker Send a message via MSN to Reverend Biker
Default

Ok friends,

Here is an update from the last post... god.. June of 2011! During the summer 2012 I was having some idling issues. It stuttered and would act flakey. Then on accelleration, around 3000 rpms up to 5000, would have a few dead spots and stumbles. I thought it was electrical so I replaced plugs and plug wires and still no change.

Turns out the plug caps have resistors built in. A set of 4 resistor-caps later and there was an improvement, but the stumble did not go away. In frustration, I took the bike back to the guy who rebuilt my carbs in April of 2012. First question was "Did you run any carb or fuel injector cleaner through it?" Answer... yep!

So... apparently if you have a 30 year old bike and you are not sure of the condition on the fuel system, you shouldn't run carb and fuel injector cleaner through it because it may dislodge chunks of crud that can clog your carb.

Jeff, my service guy, explained that you get little chunks of crud that break loose and lodge in the channels that move the air to the mixing chamber in the carbs. He took 110 lb air and blasted it through the air jets in the downdraft carbs and upon restarting, immediately noticed an improvement at idle and at sustained RPMs. I have since put 15,000 miles on it and it is running 110% better than it was in March.

Each time I complete another round of repairs and upgrades, I notice a performance improvement. At the end of my riding season this year, I have suffered some minor oil leaks; both the clutch and stator covers as well as the valve covers. Running the bike in the 5 - 6k rpm range, I would notice a bit of seepage at the edges of the valve cover gaskets.

That is my project for the rest of the cold months... to get the gaskets replaced. While I have been waiting for the mail order gaskets to arrive, I had a buddy bead-blast the chrome off of the side covers and I am taking a page from the VMax and having them coated flat black. The waterpump housing was painted hi-temp flat black. Disassembly of the parts to be replaced will likely happen early to mid feb... I will take some photos and post the progress as we go.

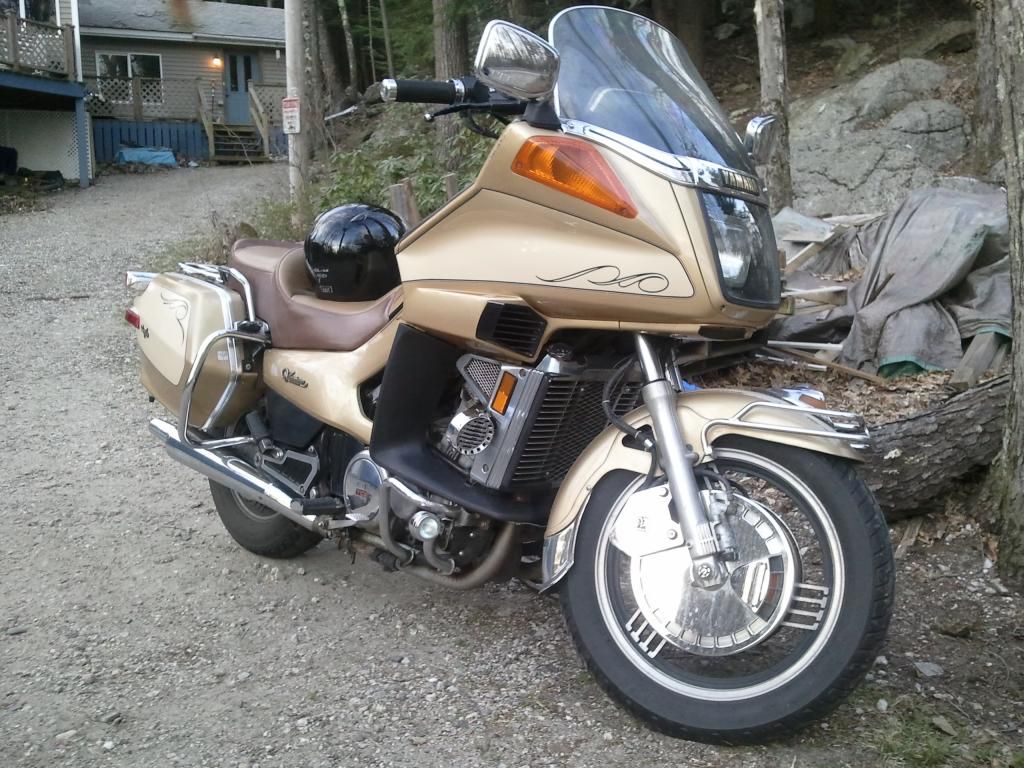

This is what it looked like when I parked it back in December. From the previous photo, you might notice the chin spoiler is a different color... I had a piece of asphalt kick up and wipe out the gold chin spoiler from the previous post's photo and had to replace it with the spoiler from my parts bike. I really like the look of the flat black lower panels and have started to flat black my spare set of bags to see what it looks like. I think with the couple covers and the water pump flat blacked, it will give it a whole new look.



Keep the shiny side up...

The Rev
__________________
The Reverend
'01 Shadow Sabre VT1100C2
'83 XVZ12T Yamaha Venture Royale

Last edited by Reverend Biker; 01-15-2013 at 12:20 PM.
Reverend Biker is offline   Reply With Quote Quick reply to this message
Old 09-10-2013, 12:32 PM   #7 (permalink)
Member

Reverend Biker's Avatar

Join Date: Jun 2008
Location: Western Massachusetts
Posts: 197
Garage
Send a message via AIM to Reverend Biker Send a message via MSN to Reverend Biker
Default

Not a winter project anymore... maintenance demanded an in-season tear-down and repair. My fork seals let go on the way to get the bike inspected (the road is riddled with potholes like someone was shelling the area with mortars). I had gobs of what looked like axle grease on the fork shafts when I got to the inspection station.

Turns out the last owner lied about having done the fork seals. My service guy said the fork oil looked like crankcase sludge and was probably the original fork oil.

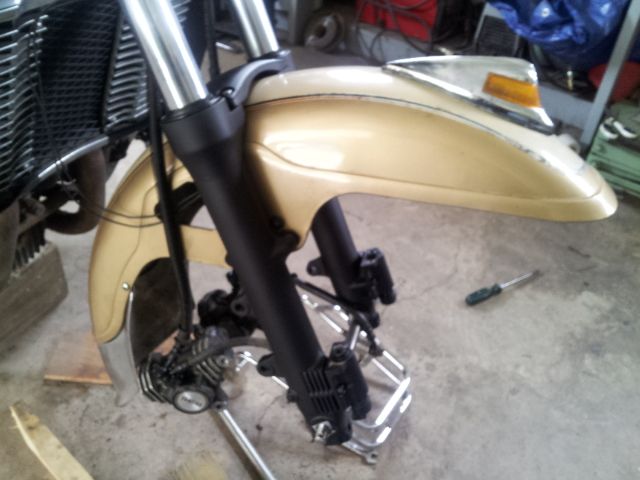

Let me tell you, when I got the rebuilt fork tubes installed, the difference was night and day! Where I was coming close to bottoming out, I had no issues anymore, and it rides even smoother.

I also had an issue with the brake light being on all the time. It appears that during the ride to the shop, I dislodged one of the patches on my exhaust, jarred the brake light spring loose from the pedal and did in my fork seals.

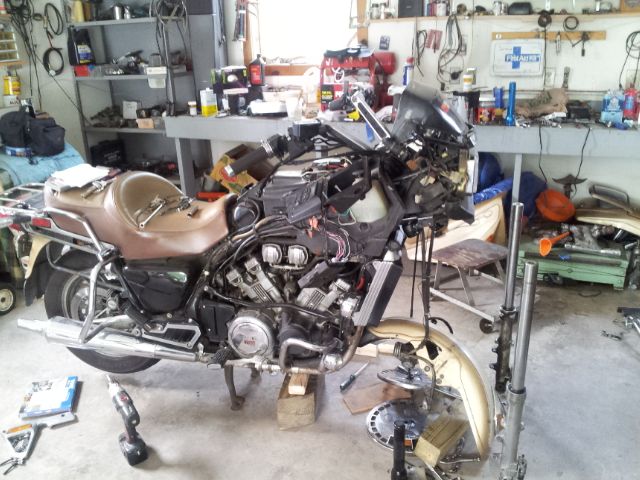

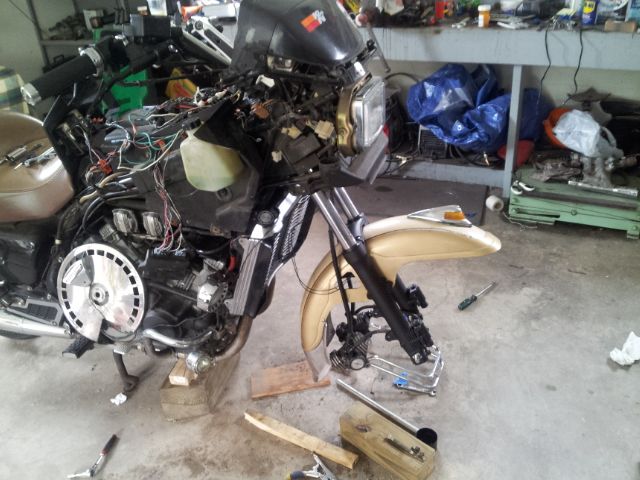

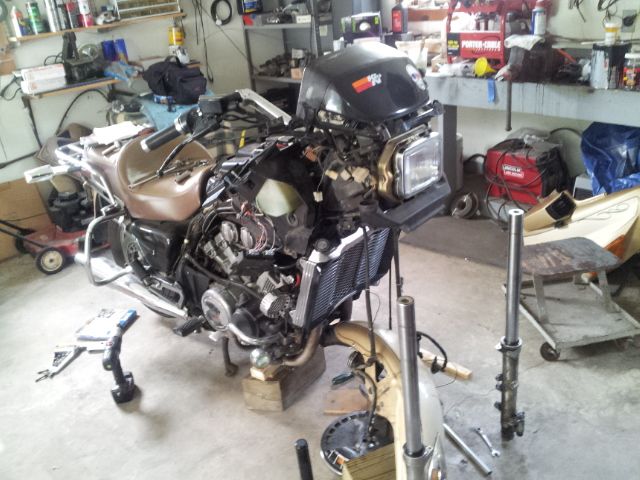

That was the last weekend in May. It wasnt until late June I had enough time to start tearing the bike down and doing the repairs. You can see what had to come off the bike just to get to the 8 bolts that hold the fork tubes to the triple clamp.

I took the fork tubes to my service guy (I do NOT have the special tools needed to rebuild the fork tubes) and he has a jig set up on his table to make it super simple. My cost was under $100 for the kit and labor to install. I also decided at that point I was going to black out the fork lowers. As a friend pointed out to me, it would complete the blacked out look. I really like how it came out.

I hope you enjoy seeing the extent and fruits of my labor. I know my limitations and I did as much as I dared in this repair. As of last night I rectified the brake spring. The bracket needed to be bent slightly and the end of the J on the spring needed to be crimped over to keep the spring on the lever, but it works flawlessly now. It looked like someone over the years had bent the pedal lever and it put the spring at a weird angle and would pop off during use.

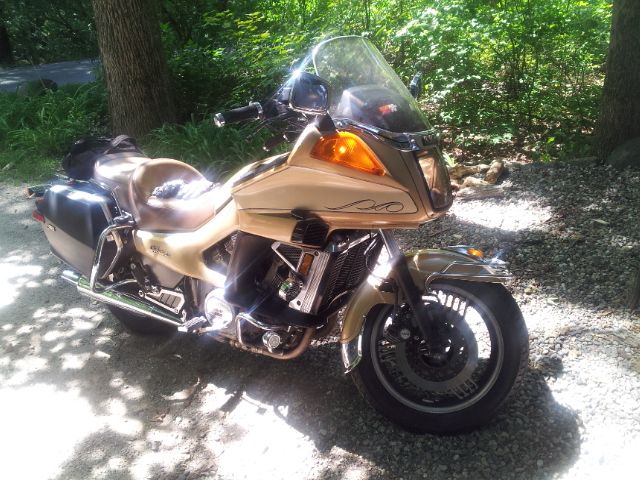

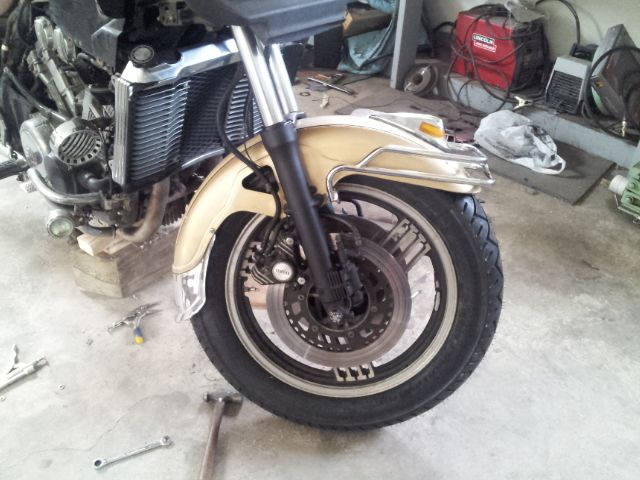

Anyhow... here is the progression from tear down to finished product (for now). I finally found a passable H pipe to repair my crude exhaust repair and that truly is my winter project for this year.

The bike was off the road for 6 weeks. I have gotten it back on the road about 3 weeks ago and have 2500 miles on it already. The bright side about not having the Yamaha, I rediscovered my Shadow and put almost 8000 miles on her during the nearly two months I didnt have this one. I will make sure to get her into the rotation more now, but honestly, we are going into cooler weather and frankly the fairing has completely spoiled me.

I will continue to post photos as I progress to getting this bike to being mechanically sound again.
